Basic fv432 vehicle layout.

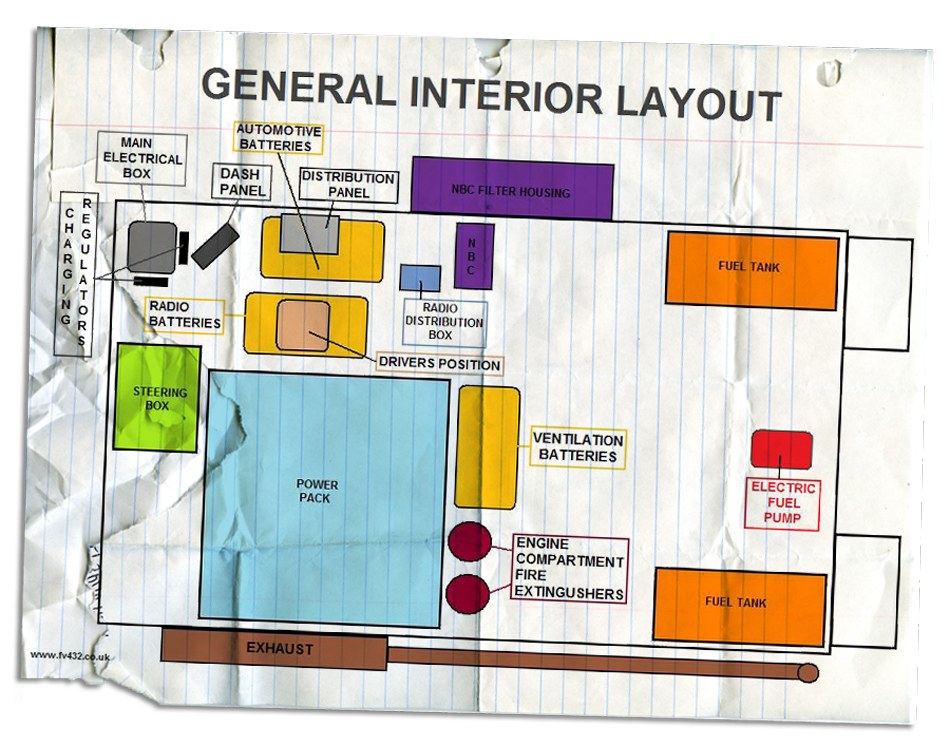

We thought it may be a good idea to include these drawings that we made to give you an idea of the layout of the interior of the average fv432.

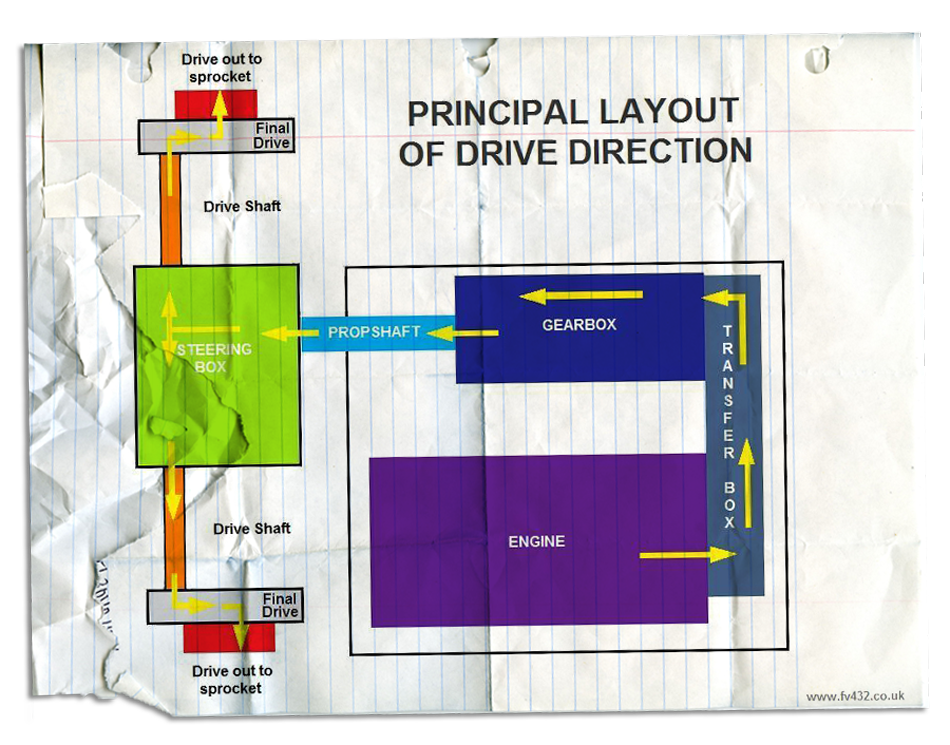

Next we have the basic layout of the major powertrain components and how the drive finds its way from the engine to the track drive sprockets.

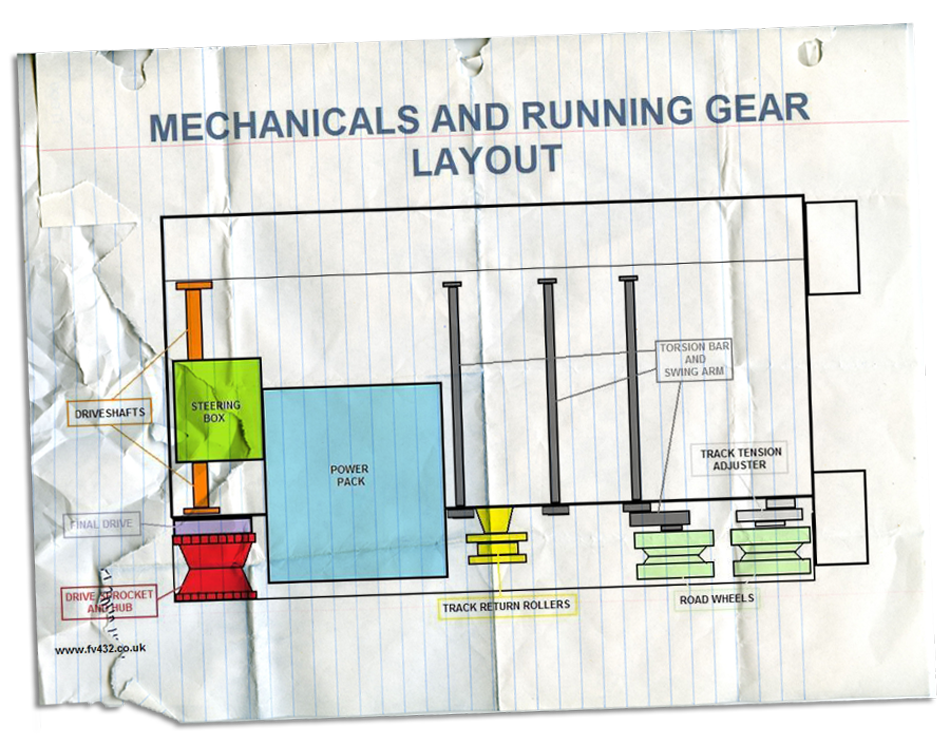

Finally we have one showing the position of the major components and the layout of the suspension/running gear.

Now that you have a feel for how it is all laid out, click next below to go on to how to check the engine oil in a Rolls Royce K60.
